Sojet Elfin 4S

High-resolution TIJ printer for case coding applications

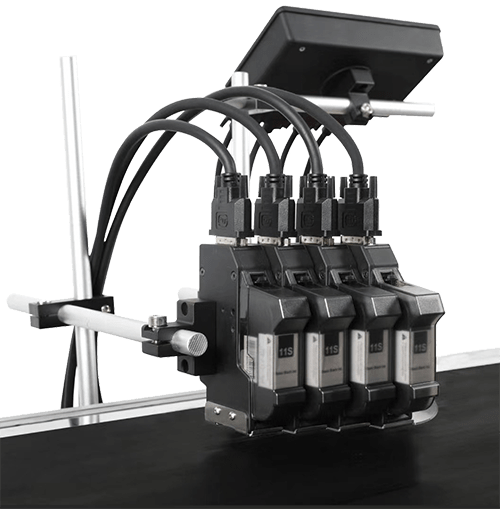

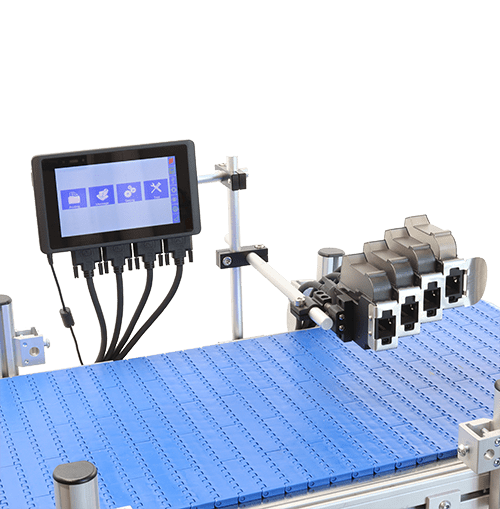

The Elfin 4S will print on just about anything. You can run the Elfin 4S with one, two, three, or four printheads and you can use any of the heads on any side of the case you prefer.

Features

Variable Data
Support dynamic data, database printing.
Independent Controller

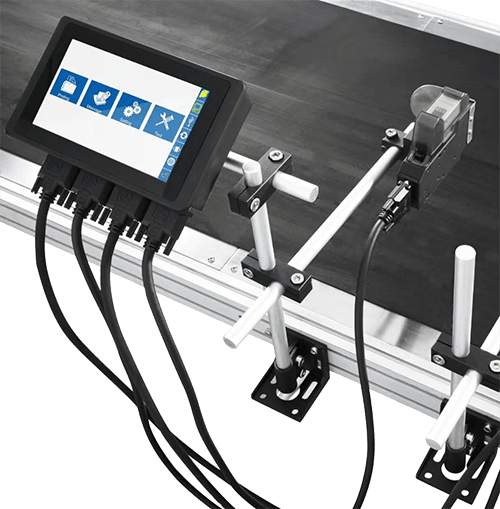

7 inch colorful LCD capacitive screen, brand new interface, can connect with normal or curve surface printheads.

Maximum Printable Height 2”
Six combined printheads enable the printable height to reach 2”.
Independent Printhead

Printheads are separated from the controller, multi-combinations, easy operation.



Print Technology HP Thermal Inkjet 2.5 Technology
Maximum Print Speed 198 ft/min (60 m/min) @ 300 dpi (default)
Print Height Minimum 3/64 in (1mm) Maximum 2 in (50.8mm)
Print Distance Up to 8mm (nozzle to print surface)
Number of Print Lines 1, 2, 3, 4 or more lines of high resolution codes
Print Resolution Vertical and horizontal 50-600 DPI
Time & Date Real-time internal clock
Port Interface Ethernet, USB 2.0, and RS232 Ports
Display 7 in (177 mm) full color touchscreen display
Printhead Cable 4 ft (1.2 m) length, other lengths available
Ink Management Built- in measuring system for ink consumption
Low Ink Indicator Alert on touchscreen display; alarm light beacon is optional
Mounting Bracket set for side printing or down printing; spring mechanism is included
Printhead Variations Long or short printhead style depending on space
Electrical Requirements 100-240 VAC, 50/60 Hz, 36W (specified AC adapter)
Agency Certifications CE, FCC


Printing Elements Alphanumeric Text, Time & Date, Logos, Item Numbering, Shift Codes, Barcodes, and more
Printing Features Reverse, Invert, Rotate, Repeat
Message Length Up to 9.8 ft (3m)
Message Storage Store up to 500 messages
Ink Usage Automatically calculated for each message and displayed on touchscreen
Database Capability Ethernet communication protocol for external communication
Languages English, Spanish, Portuguese, German, French, Chinese, Japanese, and Russian





Ink Types Water based and solvent based options
Colors Black, Red, Blue, Yellow, White; other colors available upon request
Volume 42ml ink cartridges or 370ml bulk ink solutions
Printable Materials Porous, semi-porous, and non-porous surfaces



Swipe left to see more.
