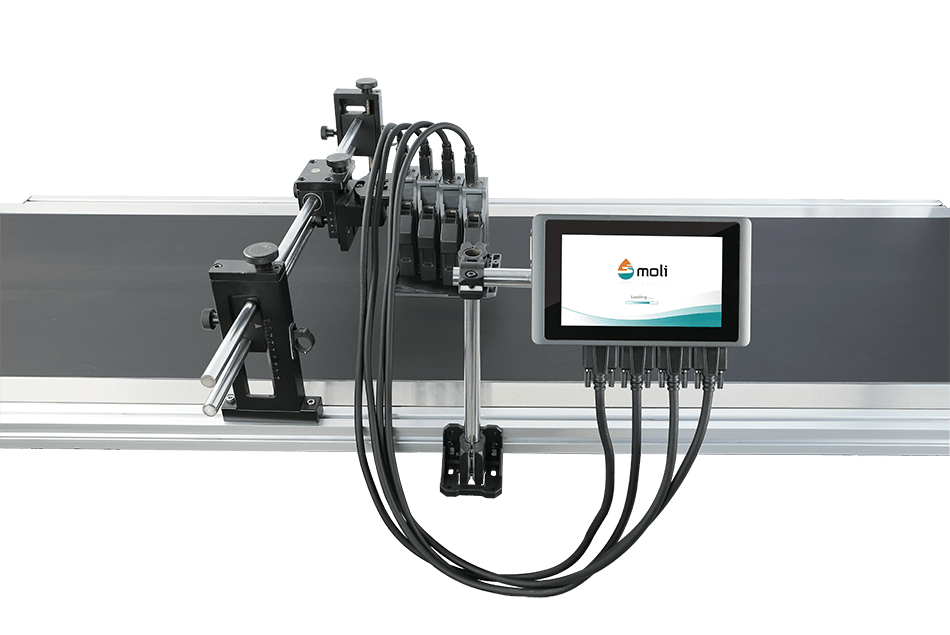

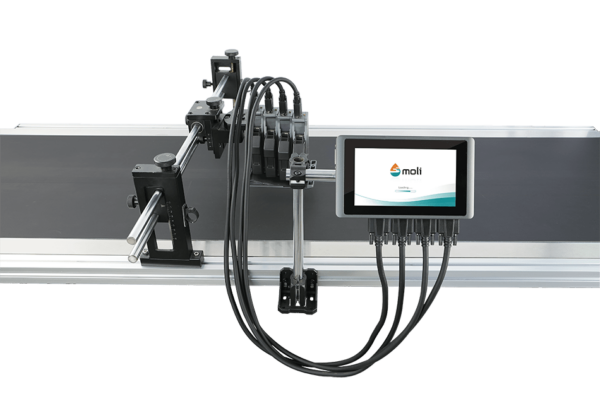

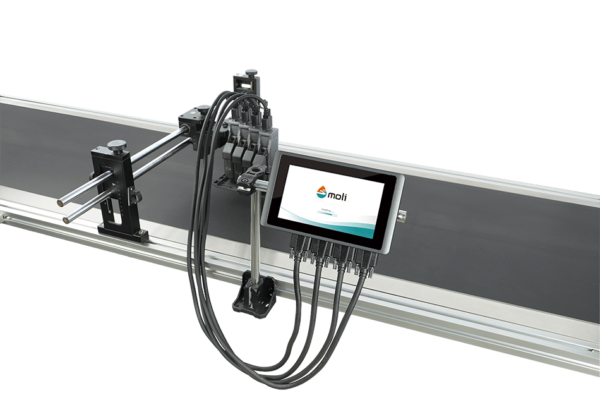

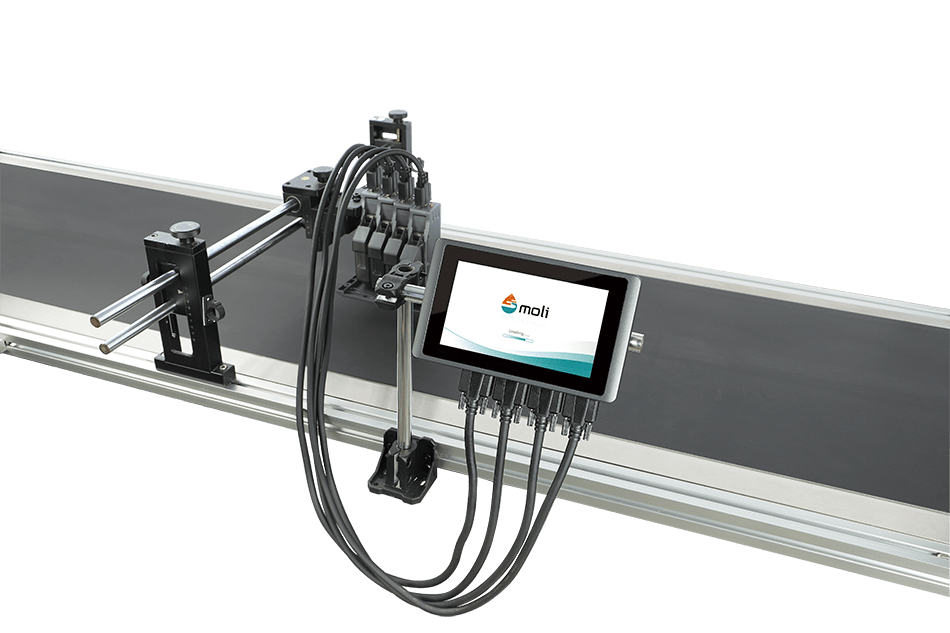

MoEco 4000
MoEco 4000
For businesses seeking a cost-effective solution for their coding and marking needs, the MoEco line is the perfect choice. Offering the same high-quality print and user-friendly interface as our MoTix line, the MoEco provides unparalleled benefits at a more accessible price point. With the option of a two or four-headed system, the MoEco offers maximum flexibility to meet the specific requirements of your project. Choose the MoEco for a reliable and affordable solution that doesn’t compromise on quality.
Get a custom quote for this product using the “add to quote” button below. You can add multiple products to one quote.
Features
High-Resolution Printing Technology
Large Touchscreen Display
Print Height Capabilities
Four 1/2 in printheads can be configured separately or together for a max print height of 2 in
Independent Printhead
Economical Value
Low cost of ownership with low maintenance costs
| Print Technology | HP Thermal Inkjet 2.5 Technology | |
| Dimensions | 224 x 151 x 38 mm | |
| Print Height | Between 1.0 mm and 50.8 mm | |
| Multi-Line Printing | Group multiple messages together for multi-line printing | |
| Number of Print Lines | 1, 2, 3, 4 or more lines of high resolution codes | |
| Print Resolution | Vertical 600 dpi Horizontal 40-1200 dpi (Single head) | |
| Maximum Print Speed | Up to 60 m/min | |
| Time & Date | Real-time internal clock | |
| Product Sensor | Built-in optical photoeye | |
| Portal Interface | Ethernet, USB 2.0, and 8 pin + 12 pin aviation connector | |
| Port Interface | Ethernet, USB 2.0, and 8 pin + 12 pin aviation connector | |
| Display | 7 in | |
| Ink Management | Built-in measuring system for ink consumption | |
| Low Ink Indicator | Alert on touchscreen display; alarm light beacon is optional | |
| Working Environment | ‘-10°, +55°C | |
| Storage Environment | ‘-20°, +70°C | |
| Agency Certifications | CE, FCC | |
| Time & Date | Custom time and date formatting including expiration date and Julian date |
| Logos | BMP, JPG, PNG |
| Item numberirng | Incremental counter for item sequencing or productino count |
| Shift Codes | Customizable shift codes times and naming with automatic rollover |
| Barcodes | All standard barcode types including 2D barcodes |
| Pritning Features | R-L, L-R, Invert, Rotate, Repeat |
| Message Length | Up to 9.8 ft (3m) |
| Message Storage | Store up to 500 messages |
| Ink Usage | Automatically calculated for each message and displayed on touchscreen |
| Database Capability | Ethernet communication protocol for external communication |
| Languages | English, Korean, and French |
| Ink Types | Water based and solvent based options |
| Colors | Black, Red, Blue, Yellow, White; other colors available upon request |
| Volume | 42ml ink cartridges or 370ml bulk ink solutions |
| Printable Materials | Porous, semi-porous, and non-porous surfaces |
Swipe left to see more.
