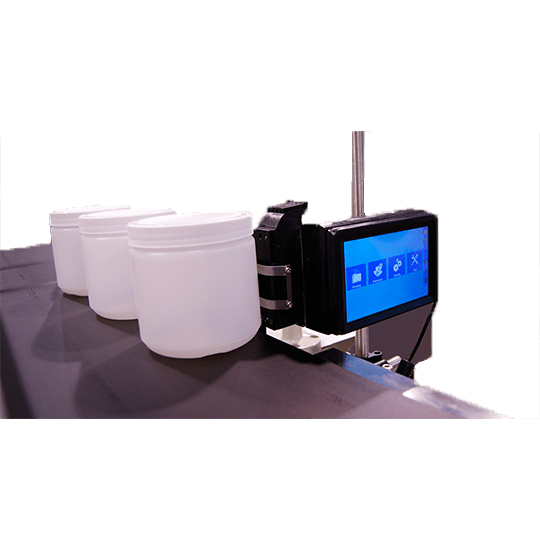

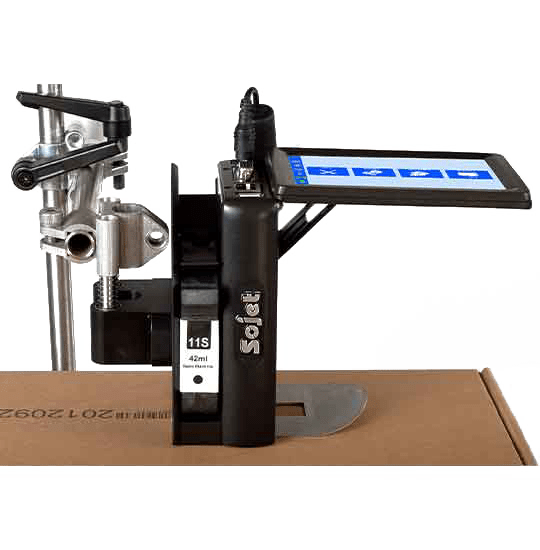

Sojet Elfin-1

High-resolution TIJ printer for various coding applications
Sojet Elfin-1 delivers ease-of-use and intuitive operation in a small footprint. It’s a perfect & cost effective solution for various date coding and marking applications of different industries. In conclusion, this little printer can tackle most coding projects.

Features

High Quality, High Resolution Printer
  • Print height up to 12.7 mm (0.5”)
  • Compact, lightweight unibody design
Touchscreen Editing
5” touchscreen color display easily identifiable editing icons
Cost Effective Printing Solution

Low upfront cost and easy installation

Small Factory Footprint

Easy integration into any production environment



Print Technology HP Thermal Inkjet 2.5 Technology
Dimensions 5.6 in x 2.6 in x 3.9 in H x W x D (142 mm x 65 mm x 98 mm) (Anti-shock plate is not included)
Print Height Minimum 3/64 in (1mm) Maximum ½ in (12.7mm)
Number of Print Lines 1, 2, 3, 4 or more lines of high resolution codes
Print Resolution Vertical 300 dpi Horizontal 300 dpi; superb image and text quality
Maximum Print Speed 198 ft/min (60 m/min) @ 300 dpi (default)
Time & Date Real-time internal clock
Product Sensor Built-in optical photoeye
Port Interface Ethernet, USB 2.0, and RS232
Display 5 in (127 mm) full color touchscreen display
Ink Management Built- in measuring system for ink consumption
Low Ink Indicator Alert on touchscreen display; alarm light beacon is optional
Mounting Bracket set for side printing or down printing; spring mechanism is included
Electrical Requirements 100-240 VAC, 50/60 Hz, 36W (specified AC adapter)
Working Environment WE -10° — +45°C; 10%-85% RH
Storage Environment SE -25° — +55°C; 10%-90% RH
Agency Certifications CE, FCC





Printing Elements Alphanumeric Text, Time & Date, Logos, Item Numbering, Shift Codes, Barcodes, and more
Printing Features Reverse, Invert, Rotate, Repeat
Message Length Up to 9.8 ft (3m)
Message Storage Store up to 500 messages
Ink Usage Automatically calculated for each message and displayed on touchscreen
Database Capability Ethernet communication protocol for external communication
Languages English, Spanish, Portuguese, German, French, Chinese, Japanese, and Russian



Ink Types Water based and solvent based options
Colors Black, Red, Blue, Yellow, White; other colors available upon request
Volume 42ml ink cartridges or 370ml bulk ink solutions
Printable Materials Porous, semi-porous, and non-porous surfaces
