Sojet Elfin 6 & 6C

High-resolution TIJ Printer for case coding applications

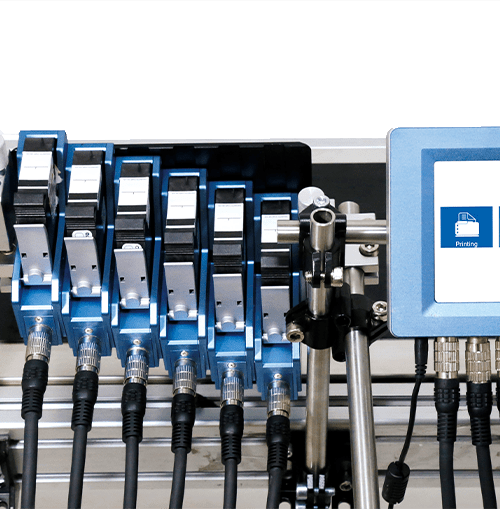

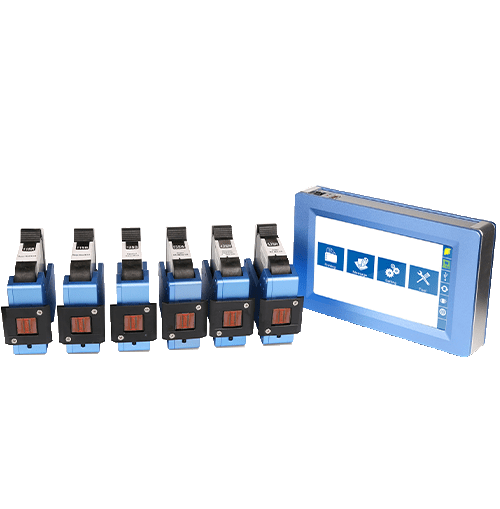

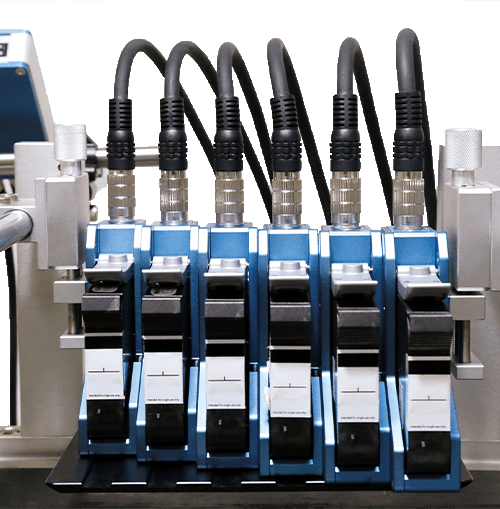

The Elfin-6 series will print just about anything you can imagine on the side of your case at up to 3″, depending on how many print heads you are using and how you configure them. The printheads come with 5ft length communication cables to make it easy to position them where you need them, including opposite sides of your case. You can run the Elfin-6 series with one, two, three, four, five, or six printheads and you can use any of the heads on any side of the case you prefer.

Features

Flexible and Adaptable Design

Independent controller separated from print heads

Up to 3 inches of print height

Supports up to 6 print heads of half inch each

Robust Industrial Design
Made of aluminum alloy housing & industrial grade, Cable connectors with easy installation
Factory Floor Protection

User level password protection



Print TechnologyHP Thermal Inkjet 2.5 Technology
Controller Dimensions8.3 in x 5.3 in x 1.46 in H x W x D (210 mm x 135 mm x 37 mm)
Printhead Dimensions4.9 in x 3.9 in x 1.2 in H x W x D (126 mm x 100 mm x 31 mm)
Print HeightMinimum 3/64 in (1mm) Maximum 3 in (76 mm)
Number of Print Lines1, 2, 3, 4 or more lines of high resolution codes
Print ResolutionVertical 300 dpi Horizontal 300 dpi; superb image and text quality
Maximum Print Speed198 ft/min (60 m/min) @ 300 dpi (default)
Printhead Cable4 ft length (1.2 m); other lengths available
Time & DateReal-time internal clock
Product SensorBuilt-in optical photoeye for each print head
Port InterfaceEthernet, USB 2.0, and RS232
Display7 in (203 mm) full color touchscreen display
Ink ManagementBuilt- in measuring system for ink consumption
Low Ink IndicatorAlert on touchscreen display; alarm light beacon is optional
MountingBracket set for side printing or down printing; spring mechanism is optional
Electrical Requirements100-240 VAC, 50/60 Hz, 90W (specified AC adapter)
Working EnvironmentWE -10° — +45°C; 10%-85% RH
Storage EnvironmentSE -25° — +55°C; 10%-90% RH
Agency CertificationsCE, FCC



Printing ElementsAlphanumeric Text, Time & Date, Logos, Item Numbering, Shift Codes, Barcodes, and more
Printing FeaturesReverse, Invert, Rotate, Repeat
Message LengthUp to 9.8 ft (3m)
Message StorageStore up to 500 messages
Ink UsageAutomatically calculated for each message and displayed on touchscreen
Database CapabilityEthernet communication protocol for external communication
LanguagesEnglish, Spanish, Portuguese, German, French, Chinese, Japanese, and Russian



Ink TypesWater based and solvent based options
ColorsBlack, Red, Blue, Yellow, White; other colors available upon request
Volume42ml ink cartridges or 370ml bulk ink solutions
Printable MaterialsPorous, semi-porous, and non-porous surfaces
