Edding Portable 25
- \600 dpi output for sharp, clear markings.
- \Up to 25 mm (1 inch), accommodating up to 20 lines.
- \Extensive ink portfolio for various materials and colors.
- \Ethernet, MQTT, OPC UA, HTTP, and web server for seamless integration.
- \Capacitive touchscreen with WYSIWYG print preview and setup wizards.
- \Impact-resistant aluminum housing and food-safe stainless-steel deflector.
- \Metabo LiHD battery provides up to 12 hours of operation, with a 35-minute recharge time.
The Ultimate Portable Solution for Coding & Marking

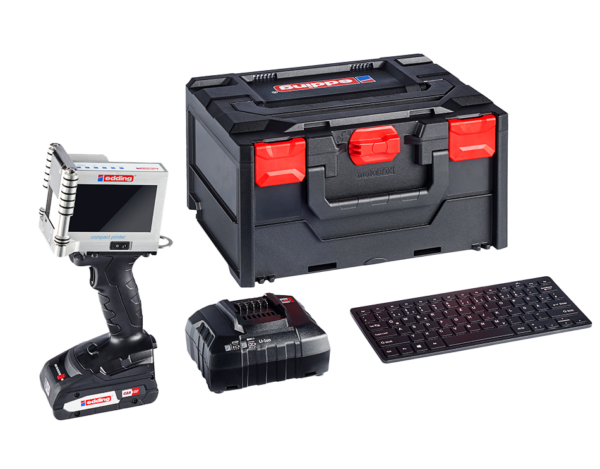

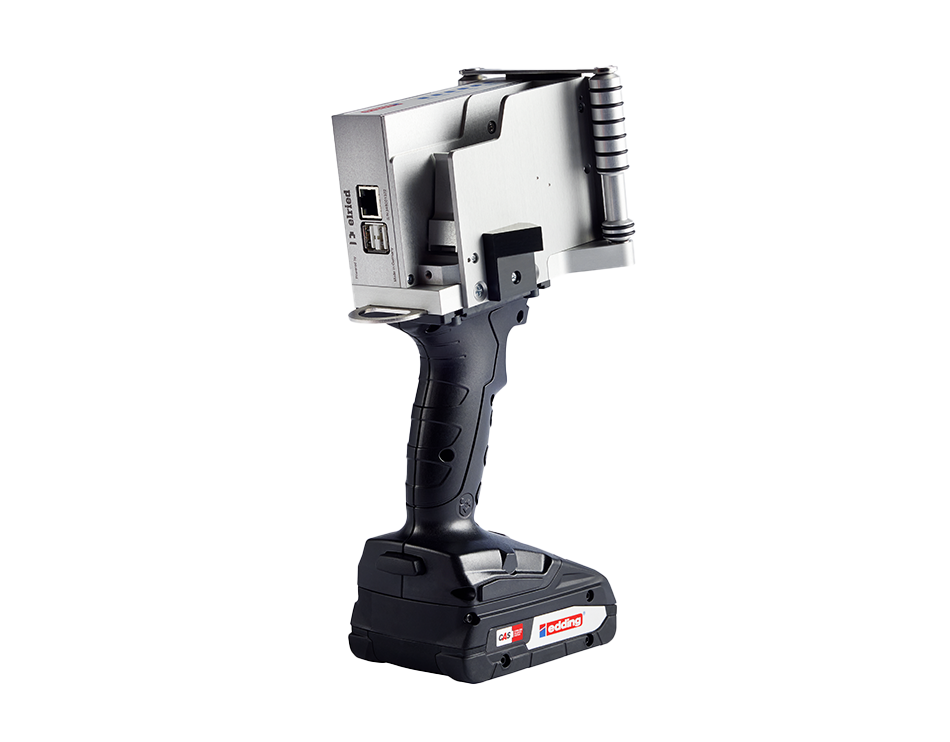

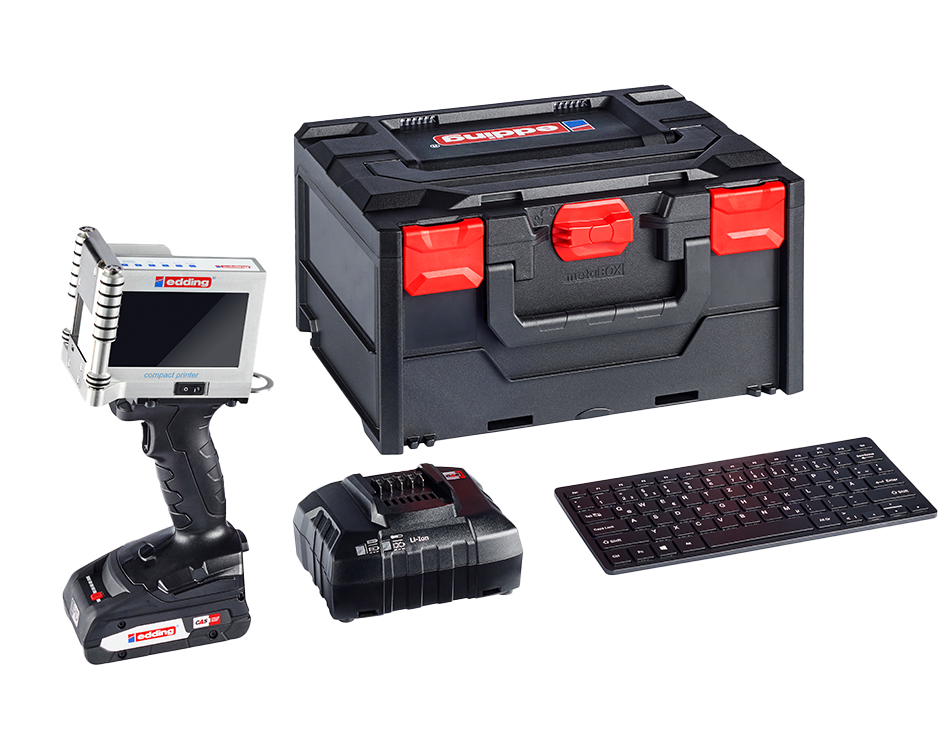

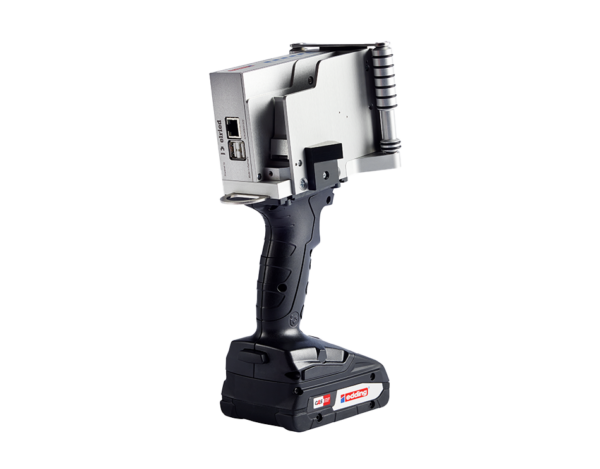

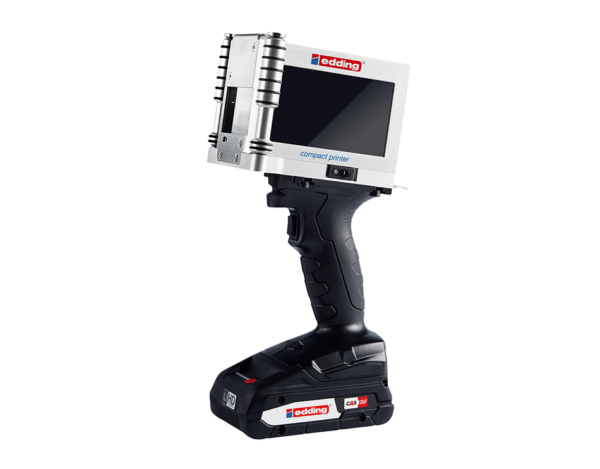

Take your production and logistics marking to a new level with the Edding Portable 25 Thermal InkJet (TIJ) Printer. This powerful printer offers the same exceptional functionality as the Edding in-line 12, now enhanced with a print height of up to 25 mm (one inch). Equipped with a positioning laser and a robust industrial battery, the Portable 25 is perfect for mobile industrial printing, delivering high-resolution 600 dpi output for barcodes, data matrix codes, text, and logos.
The cartridge system allows color changes in seconds, while the Metabo LiHD battery powers continuous printing for up to 12 hours. Easily connect to existing company data sources or generate print text with a barcode scanner, ensuring seamless, reliable, and eco-friendly labeling anywhere you need it.
| Print Technology | Thermal inkjet Printer 2.5 Technology |
| Dimensions | 257 x 152 x 104 mm |
| Print Height | Between 1.0 mm and 25 mm (1 in) |
| Number of Print Lines | 1, 2, 3, 4 or more lines of high resolution codes |
| Print Resolution | Vertical 300 dpi Horizontal 300 dpi |
| Time & Date | Real-time internal clock |
| Product Sensor | Built-in optical photo-eye |
| Portal Interface | Photoelectric cell 2 input can be used as Multi-IO: Reset product counter, increase product counter, change print direction, start/stop print, etc. | 2 USB inputs |
| Display | -Capacitive 4.3″ colour LCD touchscreen with LED technology, Automatic wizards for printer setup, Graphic instructions for installation and maintenance in printer display, On-screen keyboard, Wireless keyboard, any tablet, smartphone or PC; designated app iOS/Android |
| Ink Management | Built-in measuring system for ink consumption |
| Power Supply | Metabo LiHD premium industrial battery (4.0 Ah) works for 12 hours and only needs 35 minutes to charge. Charger AC 100-240 V.50/60 Hz., 3A beeper. |
| Weight | 2.64 lbs without ink cartridge and holder |
| Operating Environment | 5-40 °C (41-104 °F) |
| Quality | Made in Germany |
| Printing Elements | Alphanumeric characters and logos, date/time, counter, batch/box number, 1D and 2D barcodes |
| Printing Features | Supports bitmap (BMP) image format |
| Memory Capacity | Internal memory for over 100,000 texts and logos |
| Ink Usage | Automatically calculated for each message and displayed on the touchscreen |
| Connectivity | RJ 45 Ethernet connection incl. DHCP, Communication interfaces via MQTT, OPC UA, HTTP request, and TCP-Server, Web server for access from every workstation |
| Languages | English, Spanish, Portuguese, German, Romanian, Chinese, Turkish, and Russian |
| Ink Types | Water-based and solvent-based options |
| Colors | Black, red, blue, yellow, white & green |
| Volume | 42ml ink cartridges |
| Printable Materials | Porous, semi-porous, and non-porous surfaces. |
