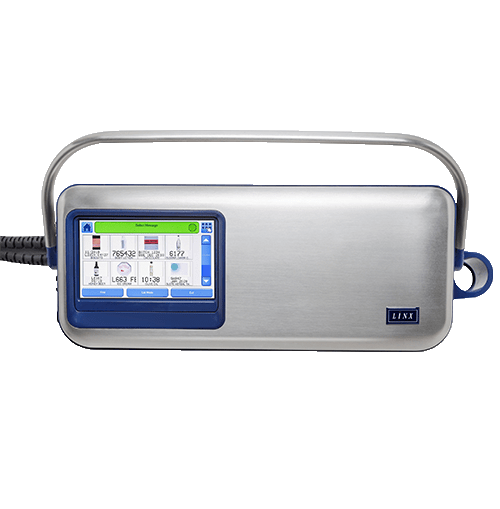

LINX 10

Portable CIJ printer for batch coding

The Linx 10 is a compact Continuous Ink Jet printer designed for single shift production. The Linx 10 provides high quality, two or three line print onto any dry substrate. With the smallest footprint on the market, you can move it to where you need to code. Size isn’t everything though. Code setup is simple, making product changeovers quick and error-free, and a robust design provides you with the high level of reliability you expect from Linx.

Features

The lightest, most compact CIJ printer in its class
Quick and easy to move and set up on new lines
No need for training
Color touch screen makes code setup and selection easy
Integrated line speed sensor for accurate coding
Can be mounted directly onto production lines
Low maintenance, self-service
Clean, refills using sealed cartridges



Lines of Print Supported2
Message Height Range0.07” to 0.22”
Character Width Range0.07” to 0.17”
Maximum Line Speed1 line 524 ft.min, 2 lines 303 ft/min
Maximum Number of Characters Per Second700
Maximum Message Length> 1m
Recommended Distance from Printhead to Substrate0.47”
Service ModuleEasi-Change Service Module with 2000 hours between scheduled maintenance
Printhead FlushingTypical cleaning interval 1 month (35 starts and stops)
Fluid CartridgesCartridge systems with RFID
Fluid Low WarningUp to 2 hours warning from fluid ‘low’ to ‘empty’
Operation AngleAllows tilt up to +/- 2 degrees in operation. Supports printing from top, side and bottom. Transportation can tolerate 45 degrees
MobilityEasy to carry, light weight design that can easily be moved between production lines
Display7 inch, high brightness back-lit, full colour touch screen with tough, solvent resistant polymer cover
AlertsAudio indicator of error conditions and screen alarm as a screensaver
Gear PumpDurable with no scheduled changes required
Extended ShutdownsUp to 4 weeks possible without printer flushing or draining



  • Step by step message creation and editing
  • Single press print start, print pause and printer shutdown
  • Password protection functions with custom profiles for secure, mistake-proof operation
  • Job selection using real product images
  • On-screen help and diagnostics
  • Live message preview
  • On-screen instructions for changing Service Module, ink and solvent refilling and other functions
  • 31 languages
  • PrintSync automatic font and message format, based on style selected and line speed
  • Simple line speed and shaft encoder set up wizard, for installation on new production lines
  • On-screen keyboards
  • Message sore and printer settings backup, copy and restore using USB storage device



Linx Black Multi-purpose Ink L100

  • Ethanol/ethyl acetate base with fast-drying time of 1-2 seconds. Suitable for food packaging applications and meets Swiss Ordinance SR 817.023.21
  • Recommended for printing on coated or varnished card, uncoated card and paper, and dry plastics, glass and metals, including aluminium foil
  • Storage temperature: 59 degrees F to 77 degrees F.
  • Operating temperature in printer: 41 degrees F to 113 degrees F
