MOTIX 2000 & MOTIX 4000 PRINTERS
At Tourmaline Enterprises, we’re dedicated to simplifying your packaging printing needs with ease and efficiency, and the MoTix 2000 and MoTix 4000 Thermal InkJet (TIJ) printers are designed to do just that. With a user-friendly interface and touchscreen controller, the MoTix printer line offers seamless integration into your production lines. These cutting-edge high-speed thermal printers are easily programmable, allowing you to customize settings effortlessly for optimal coding and marking results.
If the MoTix 2000 and MoTix 4000 inkjet printers sound perfect for your operations, contact us to make it happen. With advanced features, you’ll never have to worry about your printing needs again!
FEATURES
High-Resolution Printing Technology
High-Speed Printing
Large Touchscreen Display
7-Inch Touchscreen Display For Easy Editing (MoTix 2000)
10.1 -Inch Touchscreen Display (MoTix 4000)
Print Height Capabilities

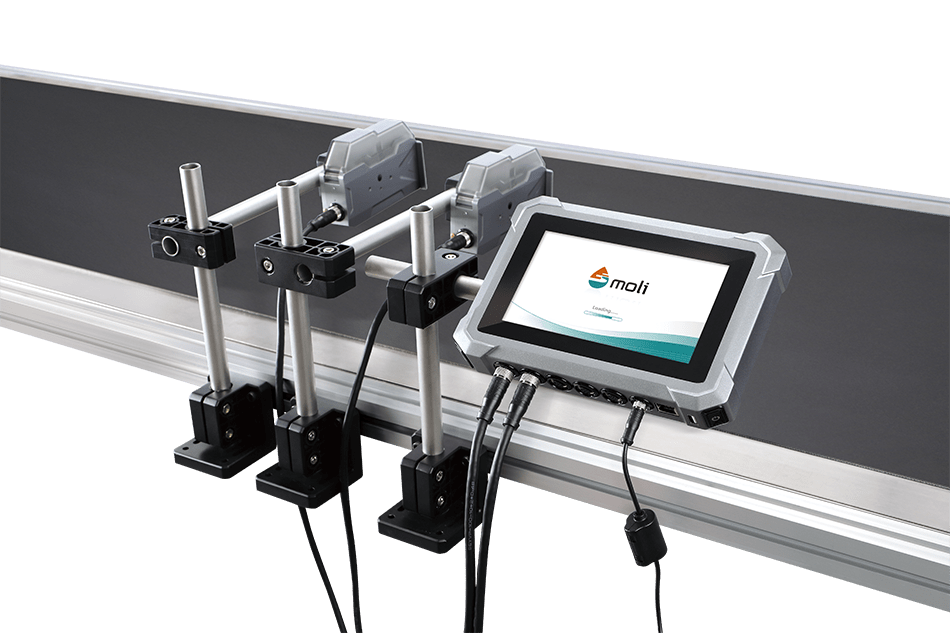

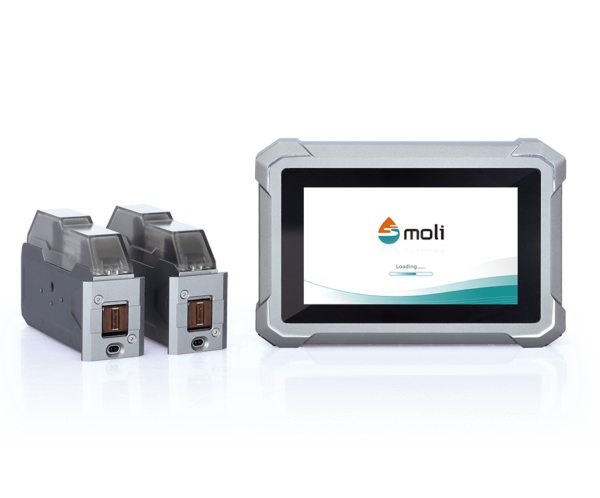

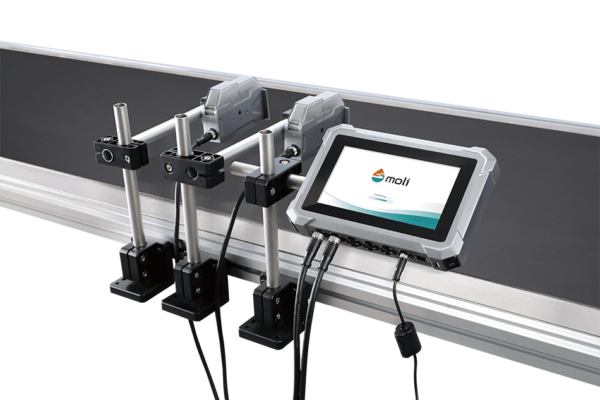

Two ½-Inch Printheads Can Be Configured Separately Or Together For A Max Print Height Of 1-Inch

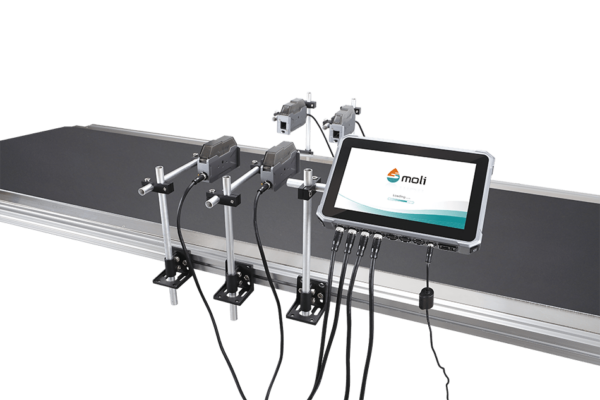

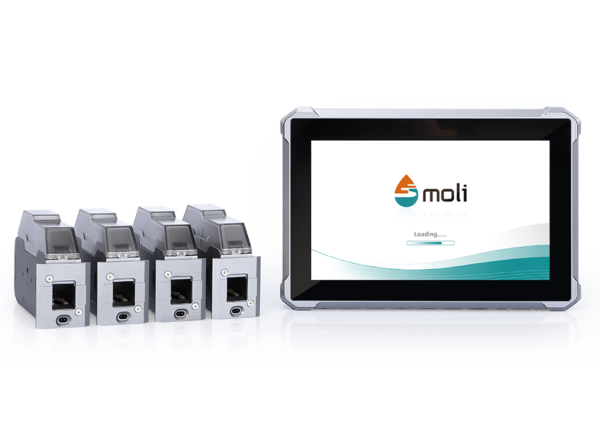

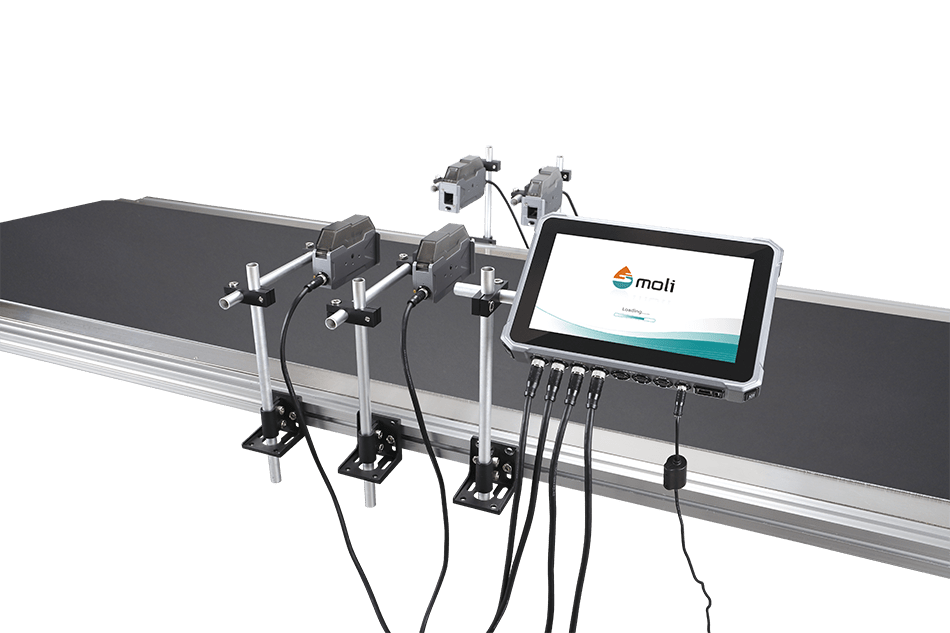

Four ½-Inch Printheads Can Be Configured Separately Or Together For A Max Print Height Of 2 -inch (MoTix 4000)
Independent Printhead
| Print Technology | HP Thermal Inkjet 2.5 Technology | |
| Dimensions | 224 x 151 x 38 mm (MoTix 2000) | 281 x 184 x 38 mm (MoTix 4000) | |
| Print Height | 1.0 – 25.5 mm (MoTix 2000) | 1-50.8 mm (MoTix 4000) | |
| Multi-Line Printing | Group multiple messages together for multi-line printing | |
| Number of Print Lines | 1, 2, 3, 4 or more lines of high resolution codes | |
| Print Resolution | Vertical 600 dpi Horizontal 40-1200 dpi (single head) | |
| Maximum Print Speed | Up to 200 m/min | |
| Time & Date | Real-time internal clock | |
| Product Sensor | Built-in optical photo-eye | |
| Portal Interface | Ethernet, USB 2.0, and 8 pin + 12 pin aviation connector | |
| Display | 7 in (MoTix 2000) | 10 in (MoTix 4000) | |
| Ink Management | Built-in measuring system for ink consumption | |
| Low Ink Indicator | Alert on touchscreen display; alarm light beacon is optional | |
| Working Environment | ‘-10°, +55°C | |
| Storage Environment | ‘-20°, +70°C | |
| Agency Certifications | CE, FCC | |
| Time & Date | Custom time and date formatting, including expiration date and Julian’s date |
| Logos | BMP, JPG, PNG |
| Item Numbering | Incremental counter for item sequencing or production count |
| Shift Codes | Customizable shift code times and naming with automatic rollover |
| Barcodes | All standard barcode types, including 2D barcodes |
| Printing Features | R-L, L-R, Invert, Rotate, Repeat |
| Message Length | Up to 9.8 ft (3m) |
| Message Storage | Store up to 500 messages |
| Ink Usage | Automatically calculated for each message and displayed on the touchscreen |
| Database Capability | Ethernet communication protocol for external communication |
| Languages | English, Korean, and French |
| Ink Types | Water-based and solvent-based options |
| Colors | Black, red, blue, yellow, white; other colors available upon request |
| Volume | 42ml ink cartridges or 370ml bulk ink solutions |
| Printable Materials | Porous, semi-porous, and non-porous surfaces |
Swipe left to see more.
