MoTix 4000

MoTix 4000

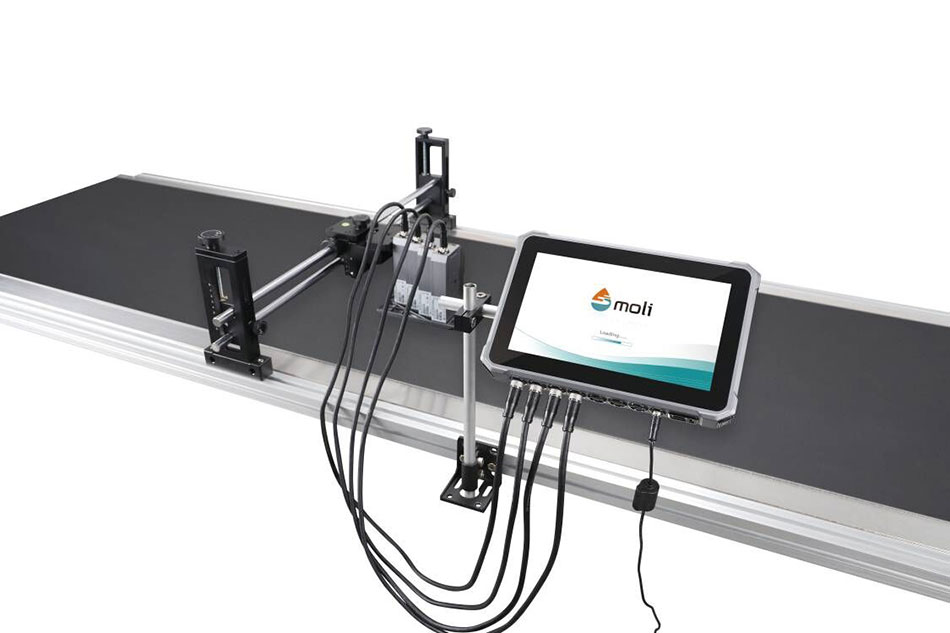

The MoTix line of printers is the ultimate solution for thermal inkjet printing, providing unparalleled performance with an intuitive user interface and lightning-fast coding and marking speeds of up to 200m/in. Whether you’re working on a small or large-scale project, our printers are equipped with two or four heads for maximum versatility, allowing for multiple configurations to meet your specific needs. With the MoTix, you’ll have everything you need to take your coding and marking to the next level.

Get a custom quote for this product using the “add to quote” button below. You can add multiple products to one quote.

Add to Quote


High-Resolution Printing Technology
Up to 1200 dpi
High Speed Printing
Printing speeds up to 200 m/min
Large Touchscreen Display
10.01 in touchscreen display for easy editing (MoTix 4000)
Print Height Capabilities

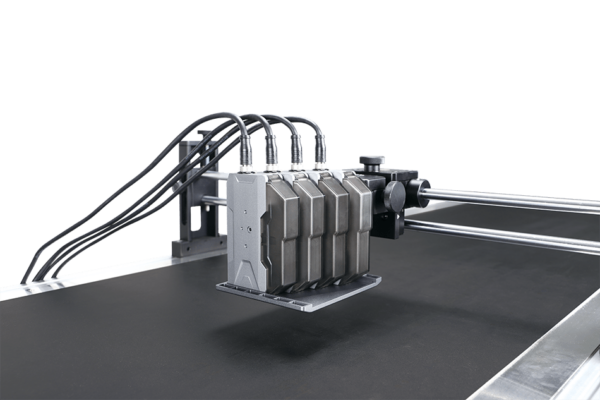

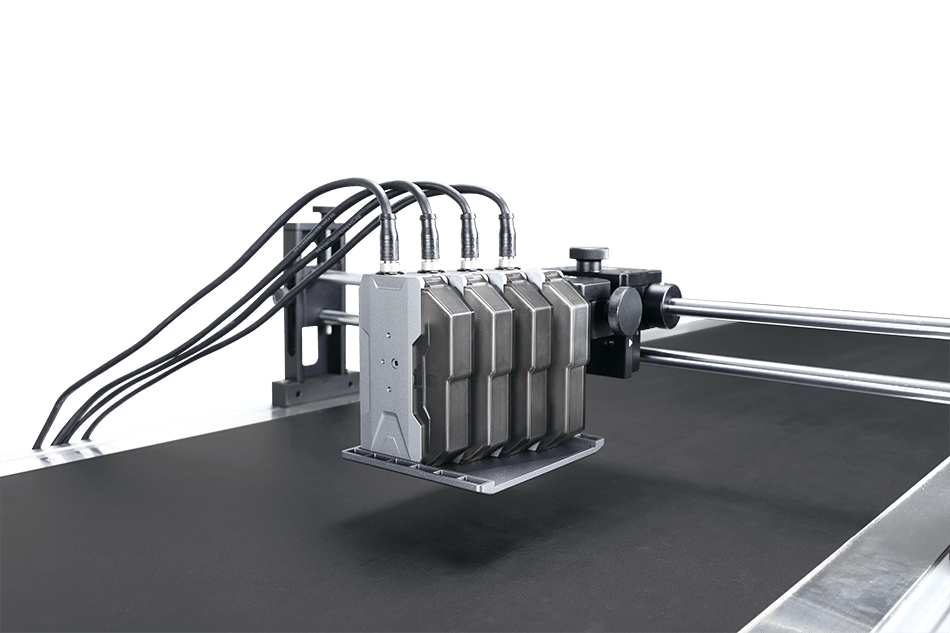

Two or four 1/2 in printheads can be configured separately or together for a max print height of 2 in
Independent Printhead
Printheads are separated from the controller, multiple configurations possible


Print Technology HP Thermal Inkjet 2.5 Technology
Dimensions 281 x 184 x 38 mm
Print Height Between 1.0 mm and 50.8 mm
Multi-Line Printing Group multiple messages together for multi-line printing
Number of Print Lines 1, 2, 3, 4 or more lines of high resolution codes
Print Resolution Vertical 600 dpi Horizontal 40-1200 dpi (Single head)
Maximum Print Speed Up to 200 m/min
Time & Date Real-time internal clock
Product Sensor Built-in optical photoeye
Portal Interface Ethernet, USB 2.0, and 8 pin + 12 pin aviation connector
Port Interface Ethernet, USB 2.0, and 8 pin + 12 pin aviation connector
Display 10.1 in
Ink Management Built-in measuring system for ink consumption
Low Ink Indicator Alert on touchscreen display; alarm light beacon is optional
Working Environment ‘-10°, +55°C
Storage Environment ‘-20°, +70°C
Agency Certifications CE, FCC


Time & Date Custom time and date formatting including expiration date and Julian date
Item numberirng Incremental counter for item sequencing or productino count
Shift Codes Customizable shift codes times and naming with automatic rollover
Barcodes All standard barcode types including 2D barcodes
Pritning Features R-L, L-R, Invert, Rotate, Repeat
Message Length Up to 9.8 ft (3m)
Message Storage Store up to 500 messages
Ink Usage Automatically calculated for each message and displayed on touchscreen
Database Capability Ethernet communication protocol for external communication
Languages English, Korean, and French



Ink Types Water based and solvent based options
Colors Black, Red, Blue, Yellow, White; other colors available upon request
Volume 42ml ink cartridges or 370ml bulk ink solutions
Printable Materials Porous, semi-porous, and non-porous surfaces


Swipe left to see more.
