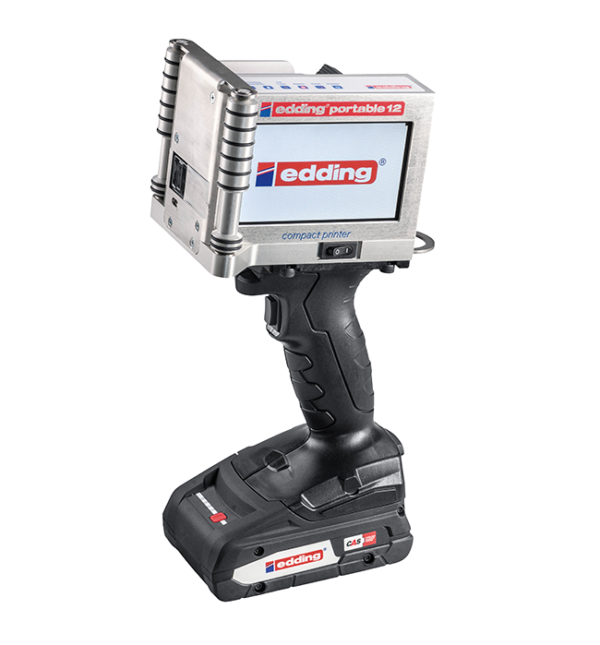

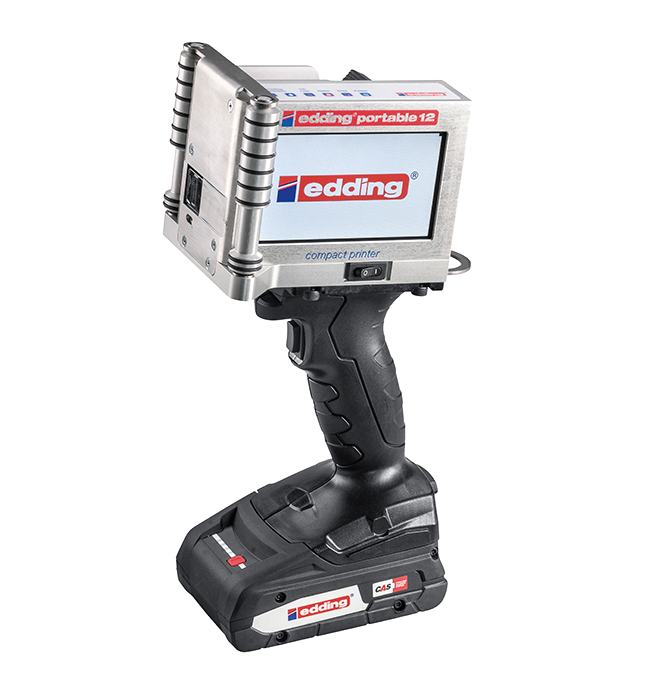

The smart solution for portable printing
The Edding Portable 12 compact printer enables the redefinition of internal production and logistics processes. Combining the immense functionality of the T100 printer with a positioning laser and industrial battery, the Portable 12 compact printer is the perfect solution for industrial marking away from the production line.
Get a custom quote for this product using the “add to quote” button below. You can add multiple products to one quote.
Print Height Capabilities Up to 0.5-inch Print Height Capabilities, up to 11 lines
High-Resolution Printing Technology Up to 600 DPI

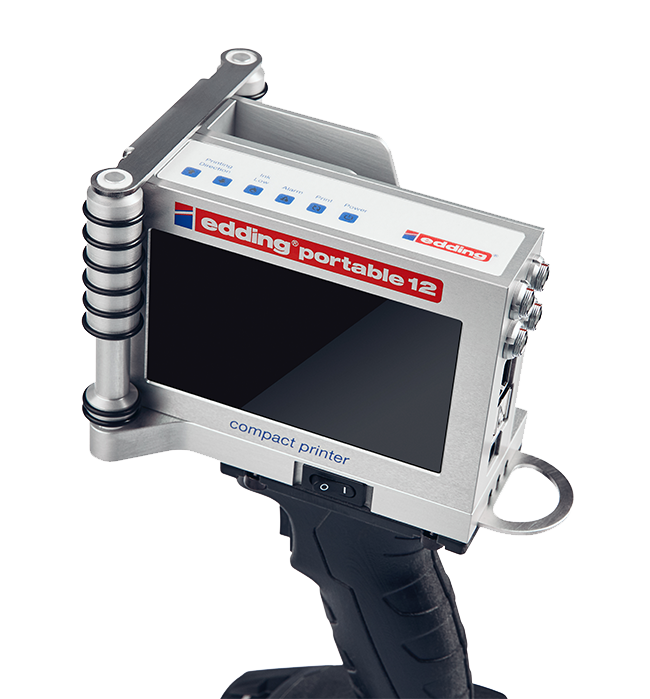

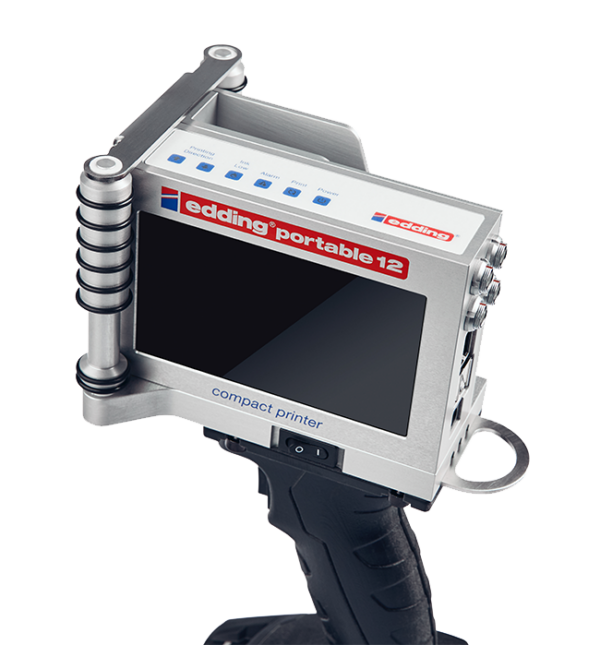

Touch Screen Display
4.3-inch Color LCD Touchscreen with LED Technology
|Print Technology||High-Res TIJ Printing Technology with 600dpi|
|Dimensions||297 x 152 x 104 mm|
|Print Height||Between 1.0 mm and 12.7 mm (0.5”)|
|Number of Print Lines||Up to 11 lines|
|Print Resolution||Vertical 300 dpi Horizontal 300 dpi; superb image and text quality|
|Time & Date||Real-time internal clock|
|Product Sensor||Built-in optical photoeye|
|Port Interface||Photoelectric cell 2 input can be used as Multi-IO: Reset product counter, increase product counter, change print direction, start/stop print, etc. | 2 USB high-speed 2.0 inputs|
|Display||Capacitive 4.3 in(109 mm) color LCD touchscreen with LED technology|
|Ink Management||Built-in measuring system for ink consumption|
|6 LED Displays||ON/OFF, print, low ink level, alarm, print direction right/left|
|Power Supply||Metabo LiHD premium industrial battery (4.0 Ah) works for 12 hours and only needs 35 minutes to charge.
Charger AC 100-240 V.50/60 Hz., 3A beeper.
Can be used for other Metabo power tools.
|Weight||1.2 kg – excluding battery and cartridge|
|Operating Environment||5-40 °C (41-104 °F) at 10–90% humidity (non-condensing)|
|Quality||Made in Germany|
|Printing Elements||Alphanumeric characters and logos, date/time, counter, batch/box number, 1D and 2D barcodes|
|Printing Features||Supports bitmap (BMP) image format|
|Memory Capacity||Internal memory for over 100,000 texts and logos|
|Ink Usage||Automatically calculated for each message and displayed on touchscreen|
|Connectivity||RJ 45 Ethernet connection with DHCP
Communication interfaces via MQTT, OPC UA, http request and TCP-Server
Web server for access from every workstation
SMTP for automatic reorder of new cartridges by the printer on request
|Languages||English, Spanish, Portuguese, German, Romanian, Chinese, Turkish, and Russian|
|Ink Types||Water based and solvent based options|
|Colors||Black, Red, Blue, Yellow, White; other colors available upon request|
|Volume||42ml ink cartridges or 370ml bulk ink solutions|
|Printable Materials||Porous, semi-porous, and non-porous surfaces|
