Sojet Elfin 1S

High-resolution TIJ printer for a variety of coding applications

Sojet Elfin-1S delivers ease-of-use and intuitive operation in a small footprint. It’s a perfect & cost effective solution for various date coding and marking applications of different industries. In conclusion, this little printer can tackle most coding projects.

Features

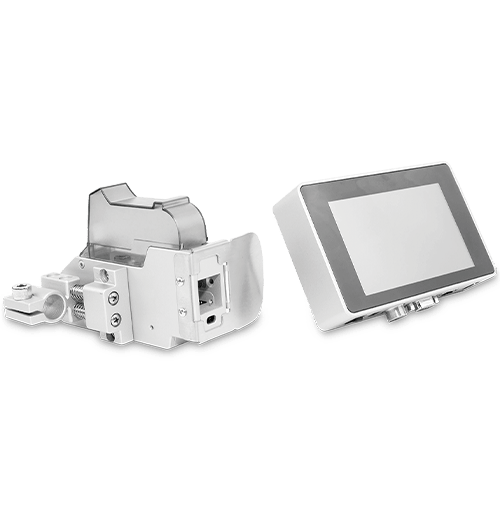

Separate Print head from Controller

Separated print head and controller, suitable for flexible installation & mounting options

Touchscreen Editing

5-inch touch screen display for easy editing

Economical Value
Low cost of ownership with low maintenance costs
Language Input

Supports multiple languages and various fonts



Print Technology HP Thermal Inkjet 2.5 Technology
Dimensions 8.6 in x 3.1 in x 6 in H x W x D (218 mm x 79 mm x 152 mm)
Print Height Minimum 3/64 in (1mm) Maximum ½ in (12.7mm)
Multi- Line Printing Group multiple messages together for multi-line printing
Number of Print Lines 1, 2, 3, 4 or more lines of high resolution codes
Print Resolution Vertical 300 dpi Horizontal 300 dpi; superb image and text quality
Maximum Print Speed 198 ft/min (60 m/min) @ 300 dpi (default)
Time & Date Real-time internal clock
Product Sensor Built-in optical photoeye
Port Interface Ethernet, USB 2.0, and RS232
Display 5 in (127 mm) full color touchscreen display
Ink Management Built- in measuring system for ink consumption
Low Ink Indicator Alert on touchscreen display; alarm light beacon is optional
Battery 2pcs 2200mAh rechargeable batteries, 11.1V-12.6V, 300 cycle
Working Environment WE -10° — +45°C; 10%-85% RH
Storage Environment SE -25° — +55°C; 10%-90% RH
Agency Certifications CE, FCC



Time & Date Custom time and date formatting including expiration date and Julian date
Logos Supports bitmap (BMP) image format
Item Numbering Incremental counter for item sequencing or production count
Shift Codes Customizable shift codes times and naming with automatic rollover
Barcodes All standard barcode types including 2D barcodes
Printing Features Reverse, Invert, Rotate, Repeat
Message Length Up to 9.8 ft (3m)
Message Storage Store up to 500 messages
Ink Usage Automatically calculated for each message and displayed on touchscreen
Database Capability Ethernet communication protocol for external communication
Languages English, Spanish, Portuguese, German, French, Chinese, Japanese, and Russian





Ink Types Water based and solvent based options
Colors Black, Red, Blue, Yellow, White; other colors available upon request
Volume 42ml ink cartridges or 370ml bulk ink solutions
Printable Materials Porous, semi-porous, and non-porous surfaces



Swipe left to see more.
