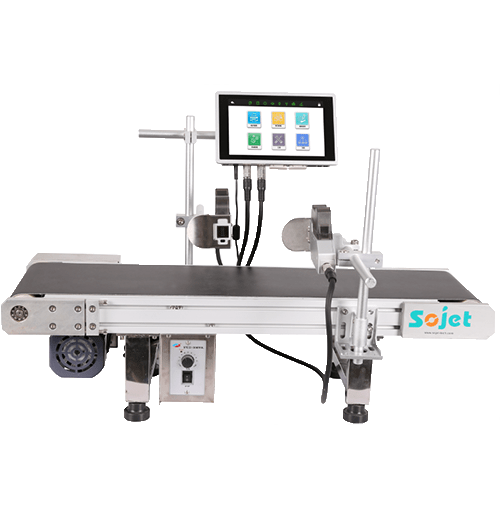

Sojet V2

High-resolution TIJ printer for case coding applications

The V2 is a fully featured system that will print just about anything. You can run the V2 with one or two print heads, and you can use both the print heads on one side of your case or you can print on opposite sides of your case at the same time.

Features

Large Touchscreen Display

8” color LCD capacitive touchscreen display

Independent Printhead

Printheads are separated from the controller. Multiple configurations possible

Print Height Capabilities

Two ½-inch print heads can be configured separately or together for a max of 1-inch in print height

Variable Data Printing

Supports dynamic data or variable data printing



Print Technology HP Thermal Inkjet 2.5 Technology
Controller Dimensions 8.9 in x 5.1 in x 1.4 in H x W x D (225 mm x 140 mm x 36 mm)
Printhead Dimensions 6.9 in x 2.0 in x 1.3 in H x W x D (175 mm x 52 mm x 33mm)
Print Height Minimum 3/64 in (1mm) Maximum 1 in (25.4 mm)
Number of Print Lines 1, 2, 3, 4 or more lines of high resolution codes
Print Resolution Vertical 300 dpi Horizontal 300 dpi; superb image and text quality
Maximum Print Speed 198 ft/min (60 m/min) @ 300 dpi (default)
Printhead Cable 4 ft length (1.2 m); other lengths available
Time & Date Real-time internal clock
Product Sensor Built-in optical photoeye for each print head
Port Interface Ethernet, USB 2.0, and RS232
Display 8 in (203 mm) full color touchscreen display
Ink Management Built- in measuring system for ink consumption
Low Ink Indicator Alert on touchscreen display; alarm light beacon is optional
Mounting Bracket set for side printing or down printing; spring mechanism is optional
Working Environment WE -10° — +45°C; 10%-85% RH
Storage Environment SE -25° — +55°C; 10%-90% RH
Agency Certifications CE, FCC





Alphanumeric Text
Time & Date Custom time and date formatting including expiration date and Julian date
Logos Supports bitmap (BMP) image format
Item Numbering Incremental counter for item sequencing or production count
Shift Codes Customizable shift codes times and naming with automatic rollover
Barcodes All standard barcode types including 2D barcodes
Plugin Manager
Printing Features Reverse, Invert, Rotate, Repeat
Message Length Up to 9.8 ft (3m)
Message Storage Store up to 500 messages
Ink Usage Automatically calculated for each message and displayed on touchscreen
Database Capability Ethernet communication protocol for external communication
Languages English, Spanish, Portuguese, German, French, Chinese, Japanese, and Russian





Ink Types Water based and solvent based options
Colors Black, Red, Blue, Yellow, White; other colors available upon request
Volume 42ml ink cartridges or 370ml bulk ink solutions
Printable Materials Porous, semi-porous, and non-porous surfaces
