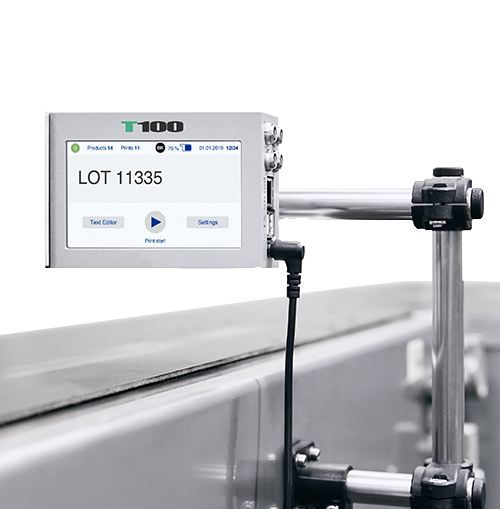

T100

High-resolution TIJ printer for a variety of coding applications

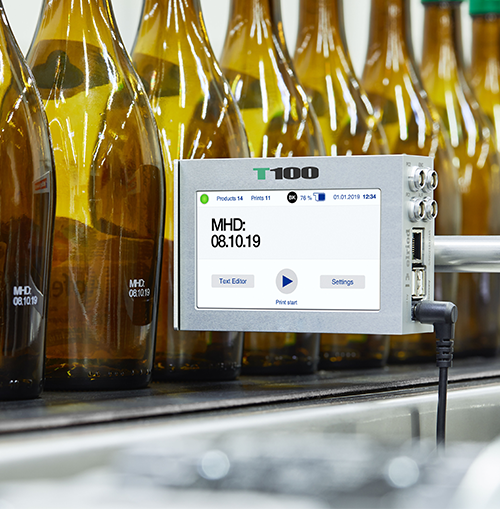

The T100 delivers ease-of-use and intuitive operation in a small footprint. It’s a perfect & cost-effective solution for various date coding and marking applications of different industries. In conclusion, this little printer can tackle most coding projects.

Features

Print Height Capabilities
Up to 0.5-Inch Print Height Capabilities, up to 11 Lines
High-Resolution Printing Technology

Up to 600 DPI

Touchscreen Display
4.3-Inch Color LCD Touchscreen with LED Technology
Ink Portfolio

Extensive Ink Portfolio for Almost All Materials and Surfaces in Several Colors



Print Technology High-Res TIJ Printing Technology with 600 dpi
Dimensions 123.5 x 77.2 x 83.0 mm
Print Height Between 1.0 mm and 12.7 mm (0.5″)
Number of Print Lines Up to 11 lines
Print Resolution Vertical 300 dpi Horizontal 300 dpi; superb image and text quality
Maximum Print Speed 249 ft/min (76 m/min) @ 300 dpi (default)
Time & Date Real-time internal clock
Product Sensor Built-in optical photoeye
Port Interface Specific industry connection for encoder, alarm, relay and photoelectric cells 1 & 2
Photoelectric cell 2 input can be used as Multi-IO: Reset product counter, increase product counter, change print direction, start/stop print, etc.
2 USB high-speed 2.0 inputs
Display Capacitive 4.3 in (109 mm) colour LCD touchscreen with LED technology
Ink Management Built-in measuring system for ink consumption
6 LED Displays ON/OFF, print, low ink level, alarm, print direction right/left
Power Supply AC 100-240 V, 50/60 Hz, 1.6 A, automatic changeover
Weight 0.6 kg – without ink cartridge and holder
Operating Environment 5-40 °C (41-104 °F) at 10–90% humidity (non-condensing)
Quality Made in Germany


Printing Elements Alphanumeric characters and logos, date/time, counter, batch/box number, 1D and 2D barcodes
Printing Features Supports bitmap (BMP) image format
Memory Capacity Internal memory for over 100,000 texts and logos
Ink Usage Reverse, Invert, Rotate, Repeat
Connectivity RJ 45 Ethernet connection incl. DHCP
Communication interfaces via MQTT, OPC UA, http request and TCP-Server
Web server for access from every workstation
SMTP for automatic reorder of new cartridges by the printer on request
Languages English, Spanish, Portuguese, German, Romanian, Chinese, Turkish, and Russian





Ink Types Water based and solvent based options
Colors Black, Red, Blue, Yellow, White; other colors available upon request
Volume 42ml ink cartridges or 370ml bulk ink solutions
Printable Materials Porous, semi-porous, and non-porous surfaces
